Key Takeaways
- The most damaging installation mistakes are electrical: no dedicated point, weak earthing, and a missing or non-working ELCB.
- Skipping or blocking the pressure relief valve is the mistake that turns a small fault into a burst tank.
- Powering on a tank that isn’t fully filled is the single fastest way to kill a brand-new heating element.
- Flimsy box screws and a hollow or mortar-joint wall cause more geyser falls than any manufacturing defect.
- Most of these mistakes cost nothing to avoid, only a little patience and the right order of work.
I get called out to fix “faulty” geysers all the time, and more often than not the geyser is perfectly fine. It’s the installation that failed. A dripping ceiling, a tripping MCB, a unit that never quite gets hot, a body that gives a tingle when you touch a wet tap, almost every one traces back to a shortcut taken on fitting day. Over a decade of servicing storage and instant geysers across Indian homes, the same eight mistakes come up again and again. By the end of this article you’ll know exactly what they are, why they cost you, and how to sidestep each one. If you want the full picture first, our complete water heater installation guide lays out the whole job in order.
1. Powering On Before the Tank Is Full
This is the one that hurts most, because it kills a brand-new appliance in minutes. A heating element is designed to sit submerged in water, which carries the heat away. Switch on a dry or half-filled tank and the element glows red, burns out, and sometimes cracks the surrounding fitting. It’s an instant warranty-void too, so you pay twice.
The fix is simple discipline. After plumbing, open a hot tap and wait until water runs in a steady, air-free stream, then close it. Only then go near the power. I’ve seen an eager homeowner flip the switch “just to test it” while the tank was still filling. The element was scrap before the water reached the top.
Warning: Never switch on a geyser to “check if it works” during installation. Confirm a full, air-free tank at the hot tap first, every single time. There is no safe shortcut here.
2. No Dedicated Circuit or Proper Earthing
A storage geyser typically draws around 2 kW. Run that off a shared socket, an extension board, or a two-pin plug, and you’re loading a circuit that was never meant to carry it. The result is nuisance tripping at best and overheated, melting cabling at worst.
Worse still is weak earthing. In a wet bathroom, the earth is what saves your life if the element ever leaks current. I still find geysers where the earth wire is simply tucked into the box, connected to nothing. It looks done. It protects no one.
- Give the geyser its own dedicated point on a suitably rated MCB.
- Use cable thick enough for the load, never a thin shared line.
- Confirm the earth runs genuinely back to the building’s main earthing.
- Make sure an ELCB or RCCB actually protects that circuit.
This is the part of the job I hand to a licensed electrician on every install, and I’d urge you to do the same. Water, a heavy load, and a bathroom punish mistakes severely.
3. Skipping or Blocking the Safety Valve
The pressure relief valve on the inlet side is not optional decoration. If the thermostat ever fails and the tank keeps heating, that valve releases the building pressure before the tank can rupture. I’ve opened up geysers where the owner “didn’t like the drip” and capped the valve. That drip was the valve doing its job.
Fit the valve exactly as the maker specifies, and never plug, paint over, or block it. Where the wall allows, I run a small drain line from it so any release goes to a drain, not down onto the wiring below. A blocked relief valve on a faulty thermostat is one of the genuinely dangerous conditions in this whole list.
4. Weak Mounting on the Wrong Wall
A filled 25 L geyser can weigh 40 kg or more. That load hangs on two bracket points for years. Two things go wrong here: the fixings are too flimsy, or the wall can’t take it.
The screws that ship in the box are frequently too light for a real masonry wall, so I upgrade them on almost every job to heavy-duty plugs and anchor bolts. Just as important, the fixings must bite into solid masonry, not a mortar joint, a hollow partition, or a false ceiling. A geyser that pulls off the wall doesn’t just break; it can flood a room and injure someone standing below.
Tip: After mounting the bracket, give it a hard, honest tug before you hang anything on it. If it shifts even slightly empty, it will fail loaded. Better to find that out now than the day the tank is full.
5. Reversing the Inlet and Outlet
Every geyser marks the cold inlet blue and the hot outlet red for a reason. Connect the mains cold to the red side and the whole draw logic inside the tank breaks. The classic symptom is a “faulty” geyser that never gives proper hot water no matter what you do to the thermostat.
Nine times out of ten, when a fresh install gives no hot water, this is why. The fix costs nothing on fitting day and a wasted service call afterwards: cold to blue, hot from red, and double-check before you tighten. On vertical units, also confirm the geyser is the right way up, because fitting it inverted confuses the internal hot and cold draw in the same way.

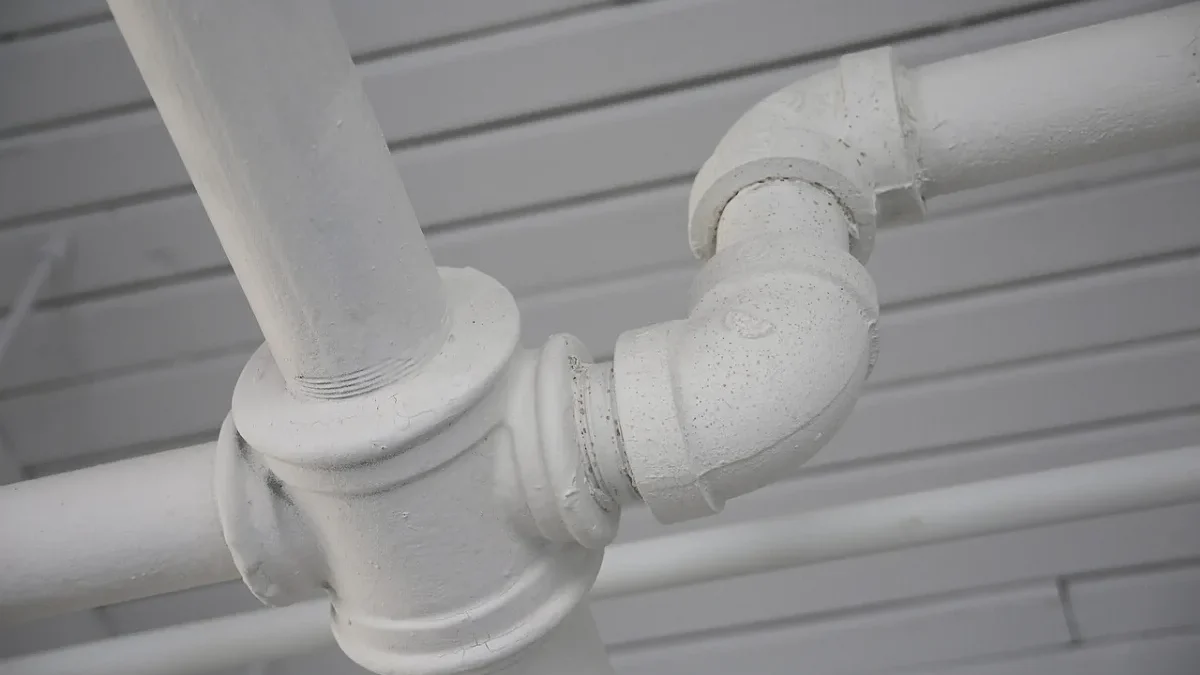

6. Careless Plumbing Joints
Slow leaks rarely announce themselves. A joint that weeps a drop a day looks fine at handover and becomes a stained ceiling a month later. The two errors I see are too little thread tape and too much brute force.
- Wrap each threaded connector in PTFE (Teflon) tape, three or four snug turns in the tightening direction.
- Fit a stop valve on the inlet so you can isolate the geyser without shutting the whole house.
- Hand-tighten first, then snug up with a spanner, firm but not so hard you crack the fitting.
- Run the system under mains pressure and inspect every joint for even a faint weep before you sign off.
Over-tightening in a panic cracks plastic fittings and distorts washers, which then leak worse. Patience and fresh tape beat force every time.
7. No Isolation, No Access
This one costs you later, not on day one. A geyser installed with no stop valve, jammed tight into a corner or boxed into a false ceiling, becomes a nightmare to service. Every descale, valve check, or element change then means shutting the whole house supply and half-dismantling the surround.
Leave working space around the unit, keep the electrical junction reachable, and always fit that inlet stop valve. In hard-water areas especially, you will be back for a descale sooner than you think, and easy access turns a two-hour job into a twenty-minute one.
8. Never Testing Before Daily Use
Switch-on is a checkpoint, not the finish line. Skipping the tests means the first person to discover a fault is a family member in the shower. That’s exactly backwards.
- Confirm the tank is full and air-free at the hot tap.
- Inspect every plumbing joint under pressure.
- Have the electrician verify earthing and press-test the ELCB.
- Run one full heating cycle and confirm the thermostat cuts the element off on its own.
- Draw hot water and check the temperature is steady, not scalding.
A geyser that reaches temperature, cuts off cleanly, holds heat, and doesn’t trip is a good install. If it trips, drips, or never heats, stop and diagnose before anyone relies on it.
Mistakes at a Glance
| Mistake | What it costs you | The fix |
|---|---|---|
| Power on before full | Burnt element, void warranty | Fill fully, then power |
| Shared circuit / weak earth | Tripping, shock risk | Dedicated point, real earth, ELCB |
| Blocked safety valve | Burst-tank risk | Fit and never block the valve |
| Flimsy mounting | Geyser falls, flooding | Heavy fixings, solid wall |
| Reversed inlet/outlet | No hot water | Blue in, red out |
Notice how many of these cost nothing to avoid. They aren’t about spending more; they’re about doing the steps in the right order and not rushing the finish. A great deal of bad advice floats around too, so it’s worth separating fact from folklore in our roundup of geyser installation myths that quietly cost you money.
Frequently Asked Questions
What is the most common water heater installation mistake?
Switching on before the tank is completely full. A dry or half-filled tank burns out the heating element within minutes and voids the warranty. Always open a hot tap and wait for a steady, air-free stream before connecting power to a freshly installed geyser.
Can a badly installed geyser be dangerous?
Yes. Weak or missing earthing in a wet bathroom, a blocked safety valve on a faulty thermostat, or a geyser that pulls off the wall are all genuinely dangerous. This is why the wiring, earthing and ELCB should always be done by a licensed electrician.
Why is my new geyser not giving hot water?
The most common cause on a fresh install is a reversed inlet and outlet, cold connected to the red side instead of the blue. Check the pipe colours first. Also confirm the tank filled fully and the thermostat isn’t set too low before assuming a fault.
Do I really need a dedicated circuit for a geyser?
Yes. A storage geyser draws around 2 kW, too much for a shared socket or extension board. It needs its own dedicated point on a correctly rated MCB, thick enough cable, proper earthing, and ELCB protection. A shared line invites tripping and overheated wiring.
Should I test the geyser before using it daily?
Always. Confirm a full tank, check every joint under pressure, have the electrician press-test the ELCB, and run one full heating cycle to confirm the thermostat cuts off. Testing at handover means you catch a leak or fault before a family member does in the shower.
Final Word
None of these eight mistakes need special skill to avoid, only patience and the right sequence: mount solid, plumb clean, fill fully, wire safely, and test before you trust. Get those right and your geyser will quietly give hot water for years without a single call-back.
For the step-by-step method that sidesteps all of these, see how to install an electric geyser the right way, or browse all our installation guides. For the safety rationale behind proper earthing, the Wikipedia article on residual-current devices is a solid primer.
